Ultraminiature
Resistance under adverse conditions
Even under extreme ambient temperatures from -40 to +85. Up to 1,000,000 cycles

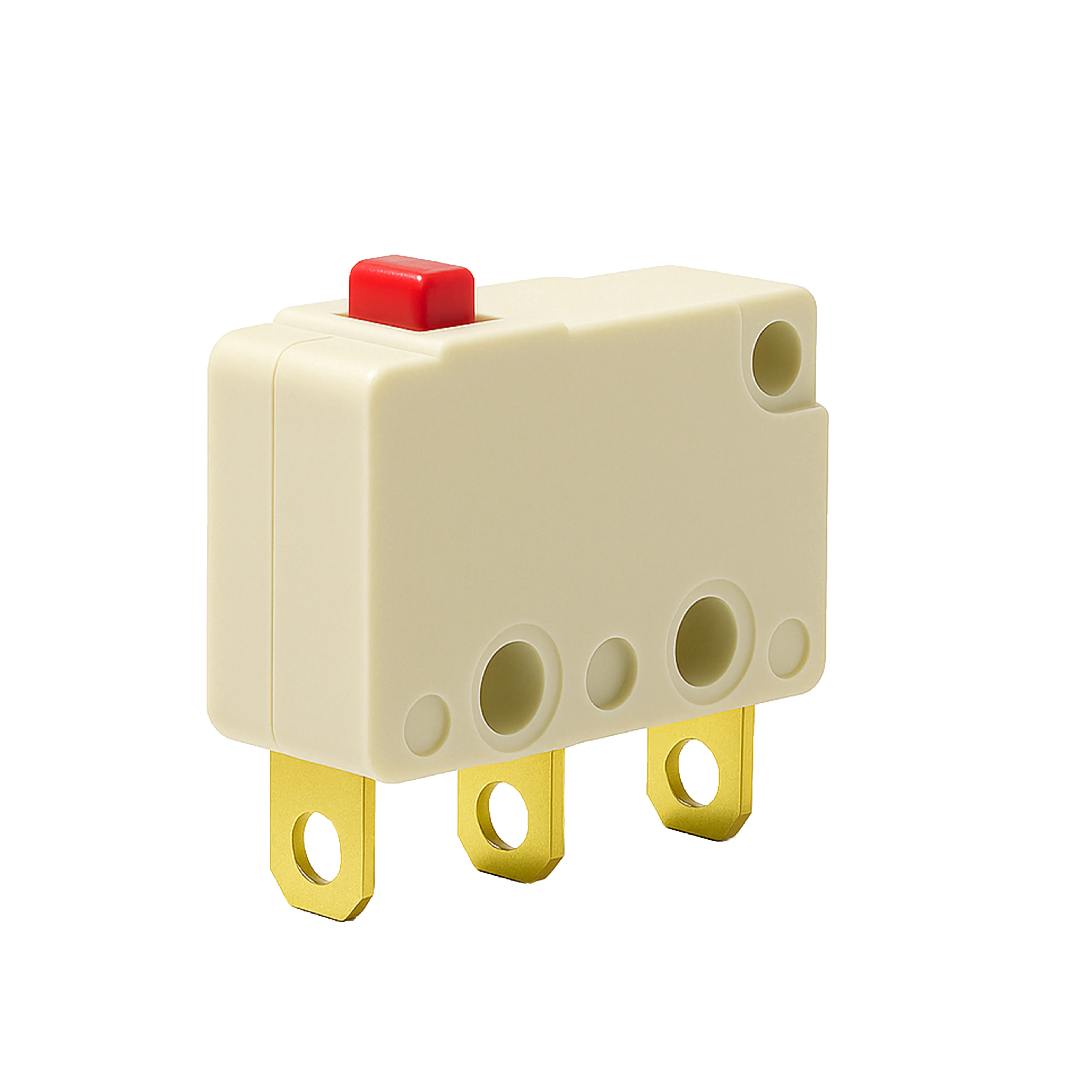

F4 Ultraminiature
Design in unsealed version IP40
-
Small design
12.8 mm x 10 mm x 5 mm -
High mechanical and electrical service life
-
Up to 250 VAC, 5A
-
Solder connections (optional with lever)
Switches – Maximum precision in the smallest of spaces Ultra-miniature switches are the ideal solution for applications where every millimeter counts. Despite their compact design, these microswitches offer exceptionally high switching performance, reliability, and service life. Whether in industrial electronics, automotive engineering, medical technology, or modern household appliances—ultra-miniature switches are used wherever space-saving yet powerful switches are required.
Designs
- F4T7, F4T7-GP
- F4T7Y1, F4T7Y1-GP
- F4T7YC, F4T7YC-GP
- Further details available on request
Resistance under adverse conditions
Even under extreme ambient temperatures ranging from -40 to +85

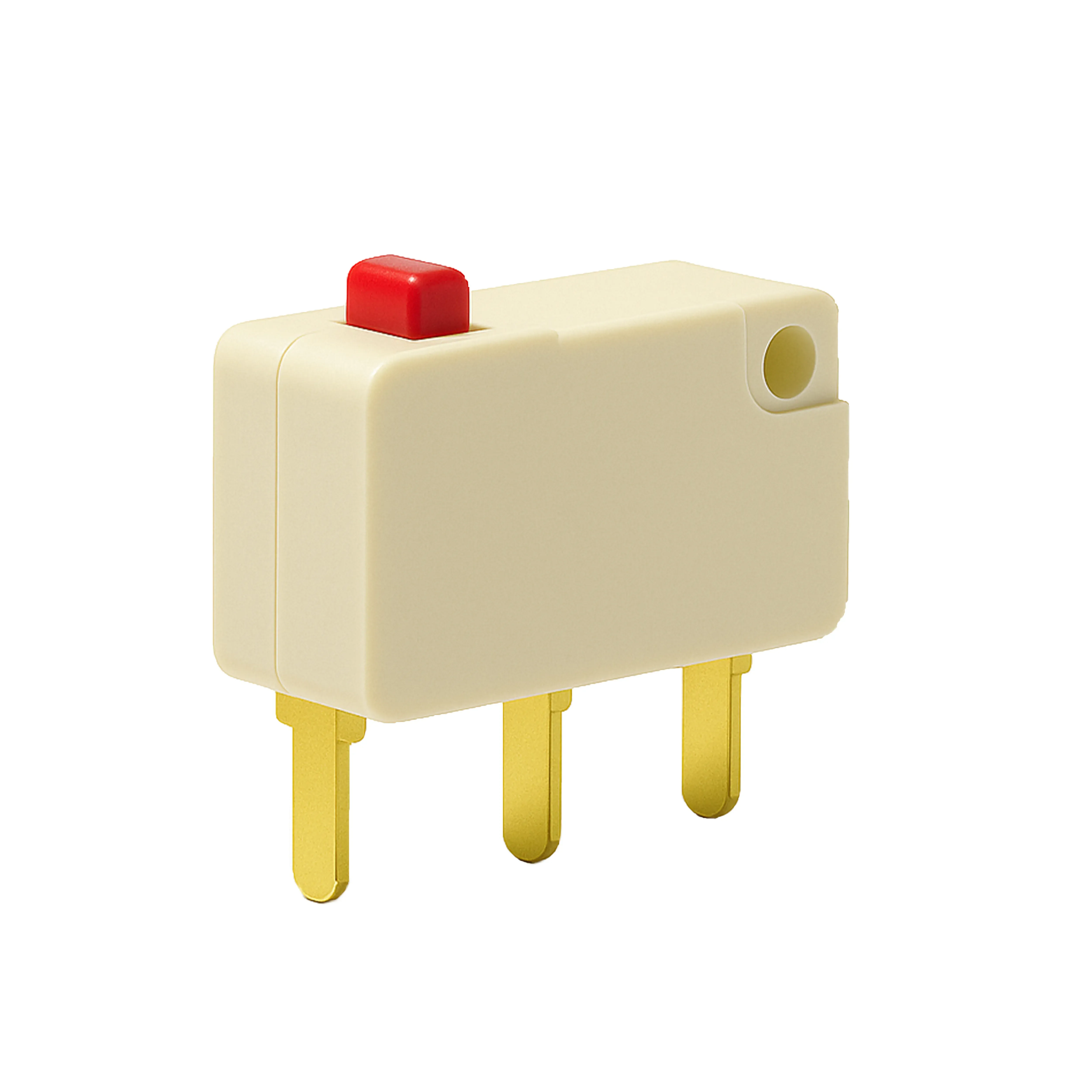

F5 Ultraminiature
Design in unsealed version IP40
-
Small design
12.8 mm × 7 mm × 5 mm -
High mechanical
and electrical service life -
Up to
250 VAC, 5 A -
Circuit board connections
(optional with lever)
Switches – Maximum precision in the smallest of spaces Ultra-miniature switches are the ideal solution for applications where every millimeter counts. Despite their compact design, these microswitches offer exceptionally high switching performance, reliability, and service life. Whether in industrial electronics, automotive engineering, medical technology, or modern household appliances—ultra-miniature switches are used wherever space-saving yet powerful switches are required.
Designs
- F5T8, F5T8-UL
- F5T8GP, F5T8GP-UL
- F5T8Y1,F5T8Y1GP-UL
- Further details available on request
Resistance under adverse conditions
Even under extreme ambient temperatures ranging from -40 to +85

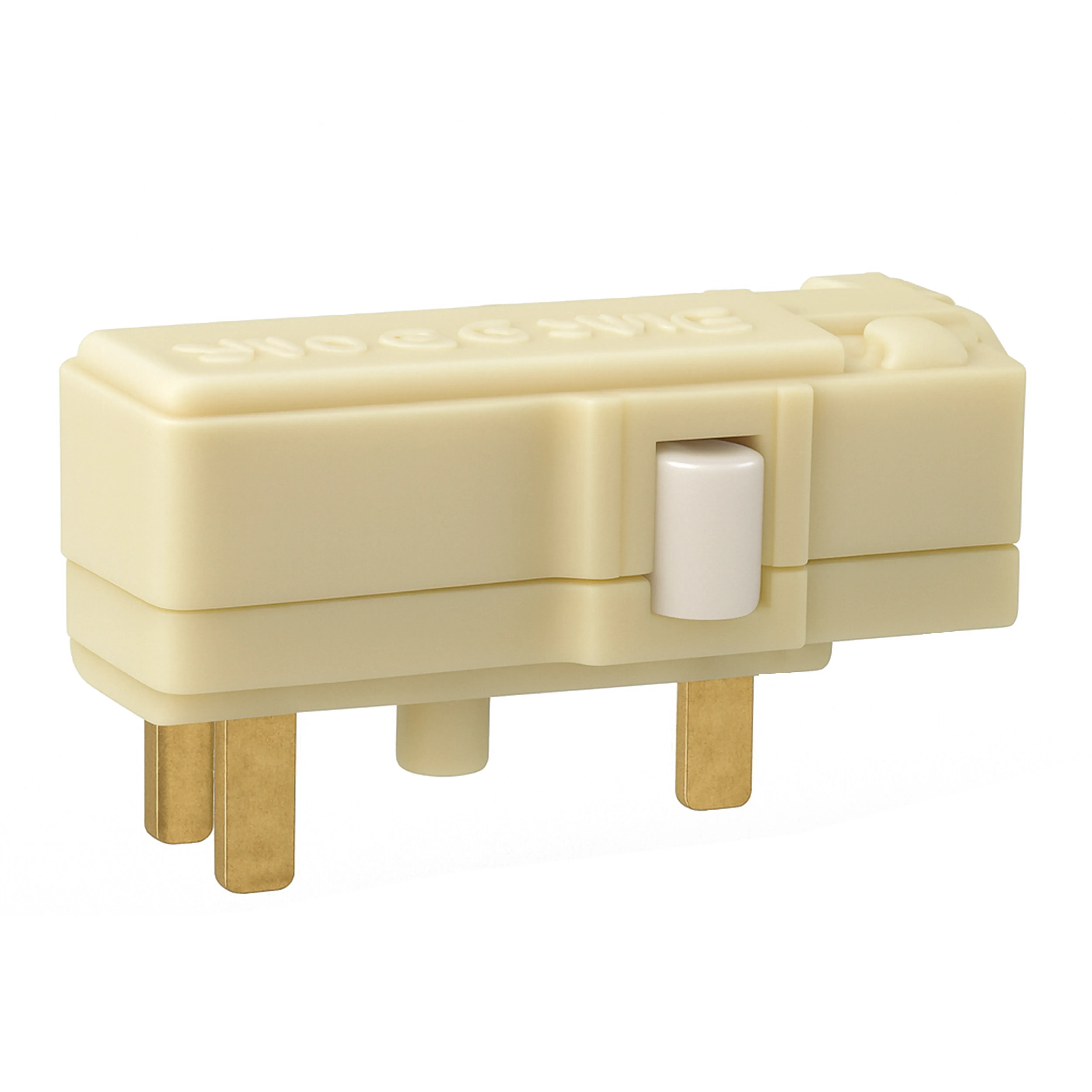

F1 Ultraminiature
Design in unsealed version IP40
-
Small design
16 mm × 6 mm × 6.5 mm -
High mechanical
and electrical service life -
Up to
250 VAC, 5 A -
Circuit board connections
(optional with lever)
Switches – Maximum precision in the smallest of spaces Ultra-miniature switches are the ideal solution for applications where every millimeter counts. Despite their compact design, these microswitches offer exceptionally high switching performance, reliability, and service life. Whether in industrial electronics, automotive engineering, medical technology, or modern household appliances—ultra-miniature switches are used wherever space-saving yet powerful switches are required.
Designs
- F1T8GPUL
- F1T8Y1GPUL
- Further details available on request
Resistance under adverse conditions
Even under extreme ambient temperatures ranging from -40 to +85
F1NS Ultraminiature
Sealed design IP54
-
Small design
14.6 mm × 6.5 mm × 6 mm -
High mechanical
and electrical service life -
Up to
250 VAC, 1 A -
Circuit board connections
(optional with lever)
Switches – Maximum precision in the smallest of spaces Ultra-miniature switches are the ideal solution for applications where every millimeter counts. Despite their compact design, these microswitches offer exceptionally high switching performance, reliability, and service life. Whether in industrial electronics, automotive engineering, medical technology, or modern household appliances—ultra-miniature switches are used wherever space-saving yet powerful switches are required.
Designs
- F1NST8, F1NST8-GP
- F1NST8A1, F1NST8A1-GP
- F1NST8AC1, F1NST8AC1-GP
- Further details available on request
Resistance under adverse conditions
Even under extreme ambient temperatures up to +75°C

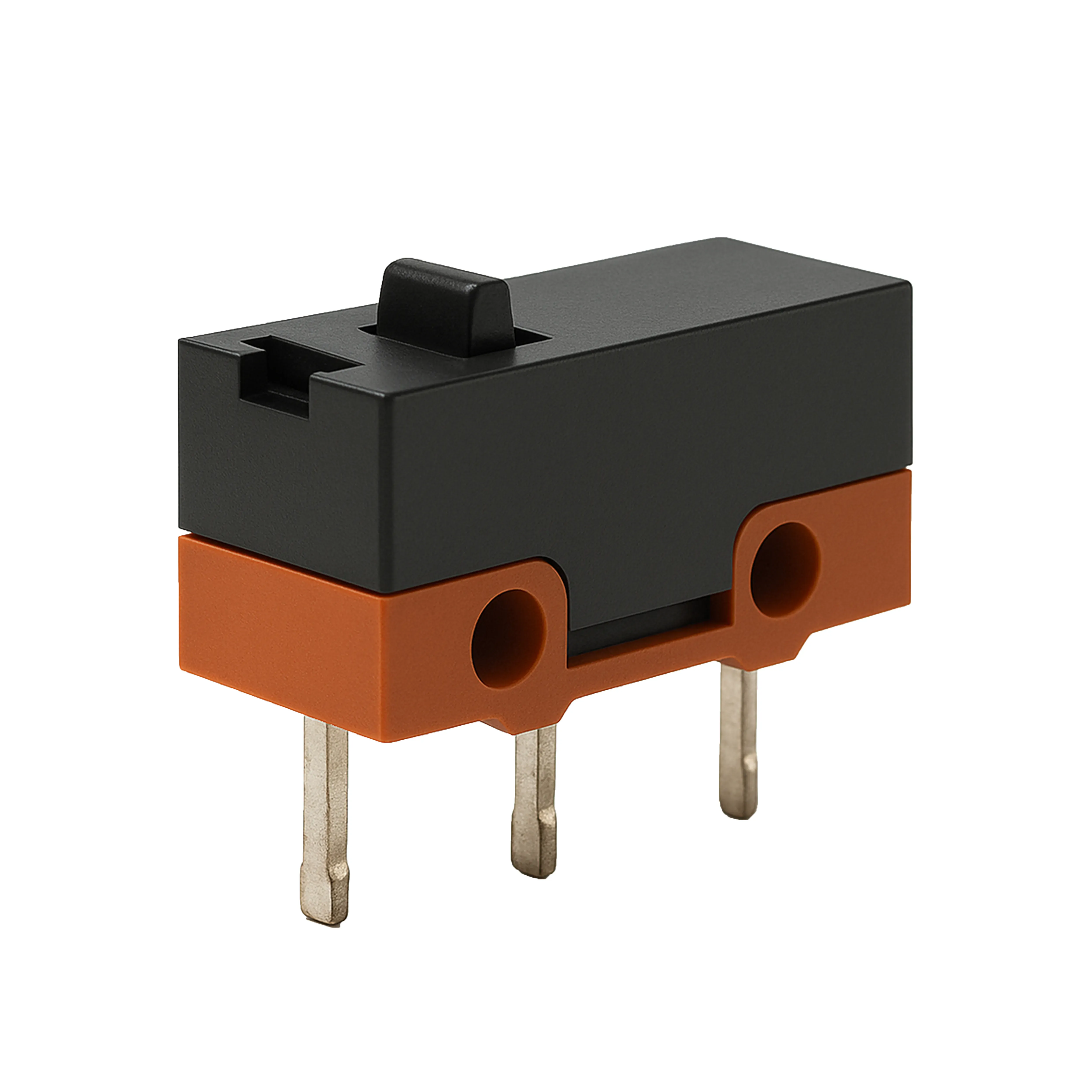

X5 Ultraminiature
Design in unsealed version IP40
-
Small design
13 mm × 6.5 mm × 6 mm -
High mechanical
and electrical service life -
Up to
250 VAC, 1.5 A -
Circuit board connections
(optional with lever)
Switches – Maximum precision in the smallest of spaces Ultra-miniature switches are the ideal solution for applications where every millimeter counts. Despite their compact design, these microswitches offer exceptionally high switching performance, reliability, and service life. Whether in industrial electronics, automotive engineering, medical technology, or modern household appliances—ultra-miniature switches are used wherever space-saving yet powerful switches are required.
Designs
- X5G3
- X5G303K1AN
- X5G303K1ANJ1
- Further details available on request
Resistance under adverse conditions
Even under extreme ambient temperatures ranging from -40 to +85
L16 Ultraminiature
Sealed design in IP6K7, automotive standard
-
Small design
14.7 mm × 9 mm × 5.4 mm -
High mechanical
and electrical service life -
Up to
12-30 VDC, 1-300 mA -
Circuit board connections
(optional with lever)
Switches – Maximum precision in the smallest of spaces Ultra-miniature switches are the ideal solution for applications where every millimeter counts. Despite their compact design, these microswitches offer exceptionally high switching performance, reliability, and service life. Whether in industrial electronics, automotive engineering, medical technology, or modern household appliances—ultra-miniature switches are used wherever space-saving yet powerful switches are required.
Designs
- L16T8
- L16T8H
- L16T8YC
- L16T8B313
- L16T8B323
- Further details available on request
Resistance under adverse conditions
Even under extreme ambient temperatures ranging from -40 to +85

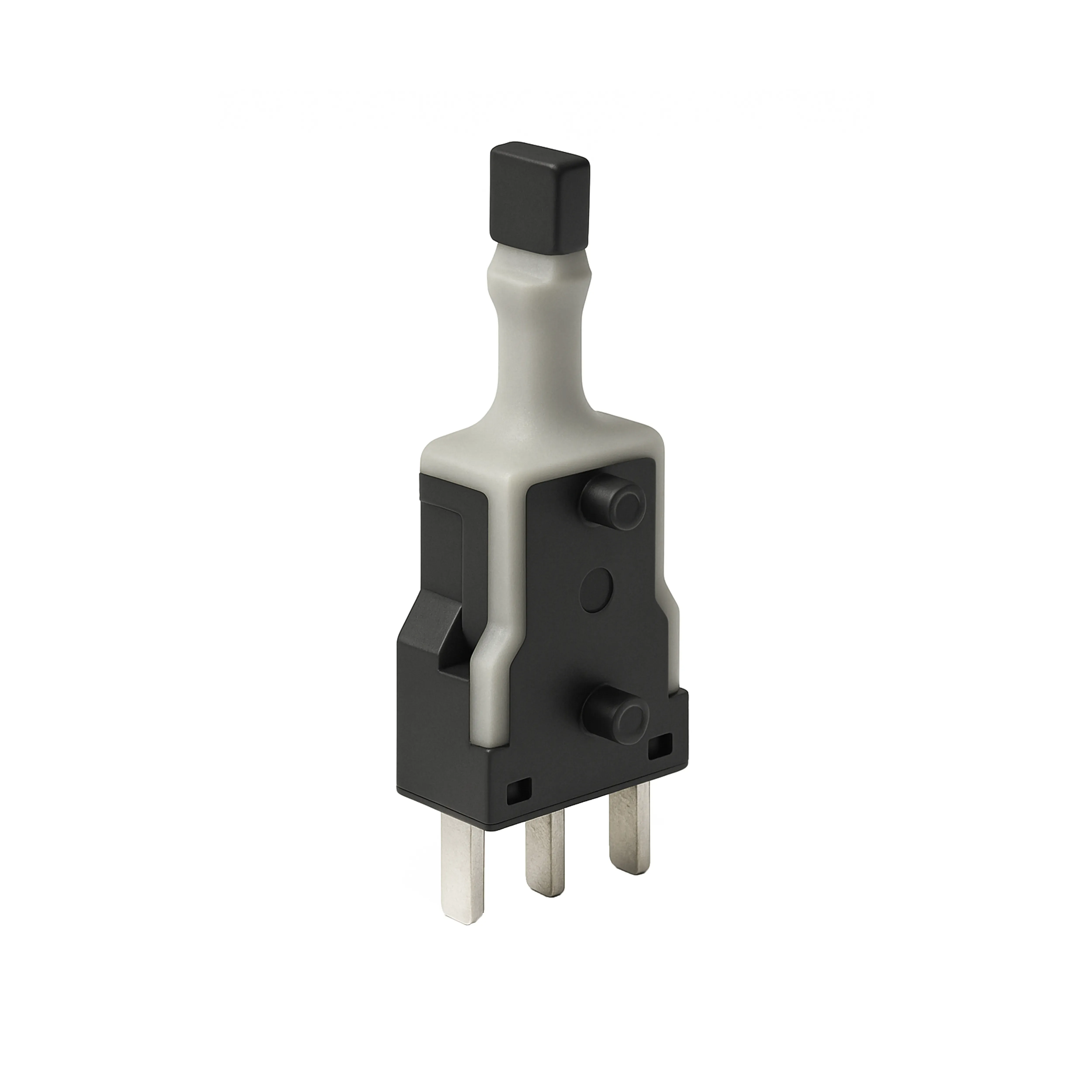

MOT11 Ultraminiature
Sealed design IP6K7
-
Small design
13 mm × 25.5 mm × 5.5 mm -
High mechanical
and electrical service life -
Up to
12 VAC, 0.1 A -
Plug connections
Switches – Maximum precision in the smallest of spaces Ultra-miniature switches are the ideal solution for applications where every millimeter counts. Despite their compact design, these microswitches offer exceptionally high switching performance, reliability, and service life. Whether in industrial electronics, automotive technology, medical technology, or modern household appliances—ultra-miniature switches are used wherever space-saving yet powerful switches are required.
Resistance under adverse conditions
Even under extreme ambient temperatures ranging from -40 to +85

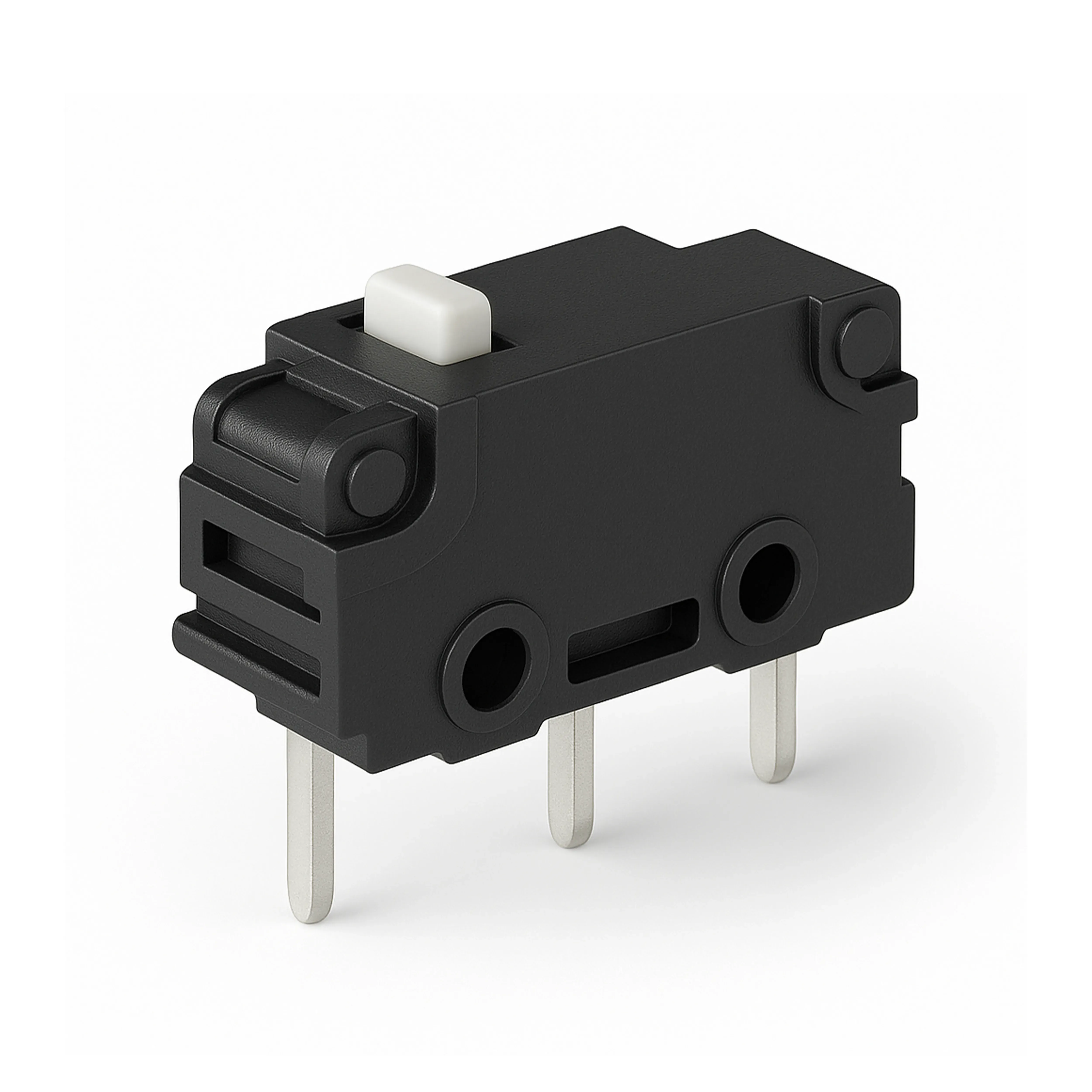

X6 Ultraminiature
Design in unsealed version IP40
-
Small design
12.8 mm × 6.5 mm × 5.8 mm -
High mechanical
and electrical service life -
Up to
250 VAC, 3A -
Circuit board connections
(optional with lever)
Switches – Maximum precision in minimum space Ultra-miniature switches are the ideal solution for applications where every millimeter counts. Despite their compact design, these microswitches offer exceptionally high switching performance, reliability, and service life. Whether in industrial electronics, automotive engineering, medical technology, or modern household appliances—ultra-miniature switches are used wherever space-saving yet powerful switches are required.
Designs
- X6G303K1AA
- X6G303K1AAJ1
- X6G311K1AA
- Further details available on request
